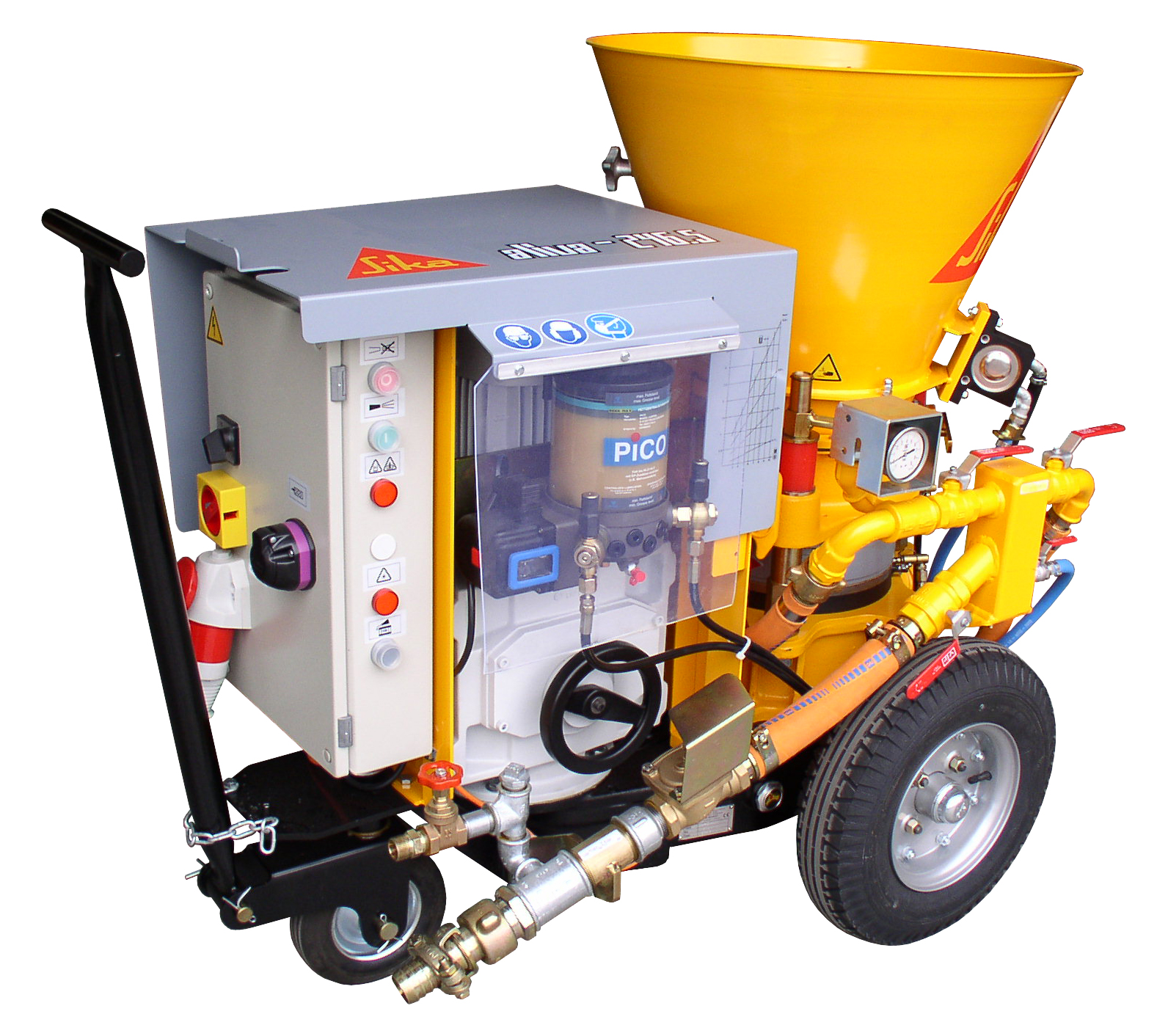

The Aliva AL-252.1 has a long tradition as the workhorse of the heavy construction industry. With an output ranging from 3.5 to 11 m³/hour (4.6 to 14.4 yd³/hour), the Aliva AL-252.1 is ideally suited for high volume, dry-process shotcrete operations. This machine is commonly used as a stand alone unit, or can be integrated into bulk-type shotcrete systems when installed on mobile equipment and fed by a bulk hopper.

• Two-axle, concrete spraying machine for dry-mix processing
• BASIC: Electric drive, combined with BASIC-Dosing unit (not synchronized)
• AIR: With air drive, combined with BASIC-Dosing unit (not synchronized)

1. HISTORY

The Aliva-252 is a sturdily constructed two-axle concrete spraying machine for the processing of dry mix.

2. APPLICATION

The machine can be used thanks to its compact design and mobility where space is at a premium e.g. in mines and galleries. Other potential applications are slope and hillside protection, lining of water tanks and swimming pools, guniting for single and double shell tunnel construction, backfilling of tubbings.

The Aliva-252 is available in the following versions:

• BASIC

Electric drive, combined with BASIC-Dosing unit (not synchronized)

• AIR

With air drive, combined with BASIC-Dosing unit (not synchronized)

3. SAFETY

Important safety regulations

For detailed informations please consult the latest edition of the machine operating manual.

4. OUTPUT

5. TECHNICAL DATA

Dimensions

With Chassis

Length L
with rotor 10 L	1770 mm
with rotor 16L	1720 mm
Width	800 mm
Height H
with rotor 10 L	1310 mm
with rotor 16 L	1410 mm
Weight	approx. 760 kg
Content of hopper	85 liters

With Skid

Length L
with rotor 10 L	1640 mm
with rotor 16L	1590 mm
Width	800 mm
Height H
with rotor 10 L	1260 mm
with rotor 16 L	1360 mm
Weight	approx. 800 kg
Content of hopper	85 liters

Drive

Electric (BASIC)

Motor output	4.4 kW
Speed range	1500 rpm
Voltages	400 V 50 Hz
400/440V 60 Hz
220 V 50 Hz
220 V 60 Hz
Protection	IP 55

With Air Motor (AIR)

Motor output	7,5 kW
Speed range	900-2000 rpm
Pressure	4,5 bar
Air consumption	9 Nm³/min.

Theoretical Conveying

Conveying (only dry)

Rotor L	Hose Ø Mm	Conveying Output *m3/h		Max. grain Mm	Max. conveying distance (m) Horizontal/vertical
		BASIC	AIR
10	50	5	3.5 – 7.0	16	300/100 m**

Dry Shotcrete Video

*with theoretical filling degree of 100%, if motor with 60 Hz = 20% higher conveying capacity.

**more than 80 m conveying distance, use steel tubes.

Theoretical Air Consumption

Dry Shotcrete Pump

Hose Ø Mm	Air Consumption Nm3/min.***
	Dry Spraying
	60 m	120 m
50	8	10
60	11	13.5

*** Air consumption data are approximate values and are depending on conveying output, conveying distance and hose diameter.

Caution: For the configuration AIR (with air motor) it has to be considered:

Total air consumption = Air consumption for conveying + Air consumption for air motor! 1 Nm³/min = 35 cfm
